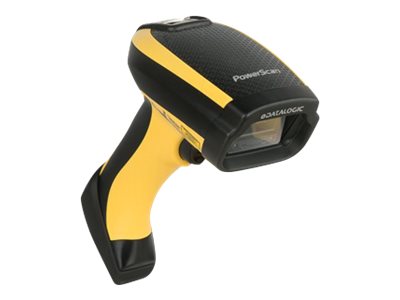

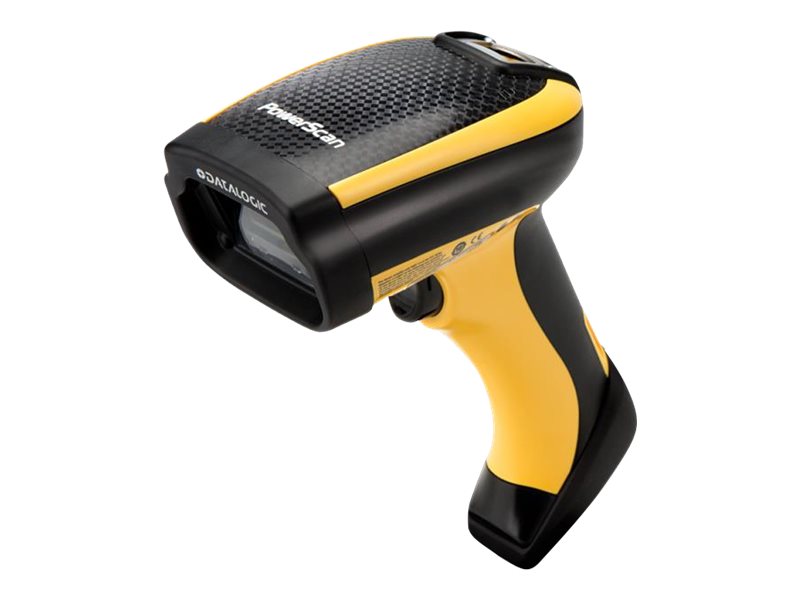

Datalogic PowerScan PD9531-DPM - streckkodsskanner

Art.nr: PD9531-DPM

Datalogic PowerScan PD9531-DPM - Streckkodsskanner - handdator - 2D-imager - avkodad - gränssnittskabel erfordras

Visa mer
Lägg i varukorgen
Favourites icon

31 i lager

Varan är i lager
Warehouses, logistic centers and manufacturing plants depend on speed and reliability when managing goods and tracking merchandise in order to improve efficiency while reducing costs. Datalogic's PowerScan PD9531 area imager is the perfect answer for these applications. An intuitive and effortless scanning experience is the target of the PowerScan 9500 family. It combines omnidirectional reading capabilities, which is typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, the PowerScan PD9531 area imager includes Datalogic's modern decoding software that guarantees snappy reading in any type of environment. Aim, trigger, decode: it is that simple! User comfort is guaranteed because of the scanner ergonomics, consisting of the handle shape, a well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement or rotation which can tire any user during long shifts. Additionally, the PowerScan 9531 area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
Typ: Streckkodsskanner - handdator
Färg: Svart, gul
Typ av gränssnitt: Gränssnittskabel erfordras
Minsta streckkodsbredd: 2.5 mil (mil = 1/1000 tum)
Typ av skanningselement: 2D-imager
Våglängd för ljuskälla: 630-680 nm
Skanningsläge: Enkelpass
Max arbetsavstånd: 110 cm
Skevhet (grader): 40
Lutning (grader): 40
PCS (Print Contrast Signal): 15%
Avkodningskapacitet: EAN/JAN, Industrial 2 of 5, Kod 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR-kod, MaxiCode, Aztec-kod, Kod 32, Kod 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Kod 11, Interfolierad 2 av 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Austrialiensisk poststandard, Kinesisk poststandard, Japansk poststandard, Kix (Nederländsk poststandard), MacroPDF417, Royal Mail, Micro QR-kod, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post
TTL-avkodning: Avkodad
Anslutningsteknik: Kabelansluten
OK-meddelande: Ljudsignal, LED-indikator
Egenskaper: Med avtryckare, bildläsning, robust, Datalogic Three Green Lights (3GL)
Standarder som följs: FCC Klass B-certifierade, VCCI, BSMI, GOST, NOM, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, EMC, FCC Part 15, IC, RoHS, Laser Class 2, KCC, REACH, EN 60825-1, IP65
Spänning: Likström 5 V
Elektrisk ström erfordras: 335 mA (drift), 180 mA (vänteläge)
Bredd: 7.4 cm
Djup: 11 cm
Höjd: 21.2 cm
Vikt: 330 g
Service och support: Begränsad garanti - 3 år
Min temperatur vid drift: -20 °C
Max temperatur vid drift: 50 °C
Luftfuktighet vid drift: 0 - 95 % (icke-kondenserande)
Dropspecifikation: 2 m
Powerscan 9500 Data Sheet.pdf Powerscan PD953X Quick Reference Guide.pdf Powerscan 950X Reference Guide.pdf
