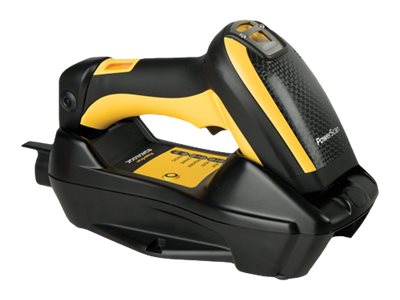

Datalogic PowerScan PBT9501-DPM EVO - RS-232 Kit - streckkodsskanner

Art.nr: PBT9501-DPMRBK20EU

Datalogic PowerScan PBT9501-DPM EVO - RS-232 Kit - streckkodsskanner - bärbar - avkodad - Bluetooth 3.0

Visa mer
Lägg i varukorgen
Favourites icon

Restnoterad

Det går att beställa produkten nu så skickar vi den så fort den är i lager.
• Ergonomic shape with well-balanced weight The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations. • 'Green Spot' technology The patented 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces and offer an optional Ethernet for standard or industrial uses. • Motionix motion-sensing technology The PowerScan 9501 imagers introduce a modern technology with the 'Liquid Lens' feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
The PowerScan 9501 2D area imagers combine omnidirectional reading capabilities with outstanding optical characteristics, resulting in a scanner that is able to read any kind of bar code, regardless of orientation!
Typ: Streckkodsskanner - bärbar
Färg: Svart, gul
Typ av gränssnitt: Bluetooth 3.0
Minsta streckkodsbredd: 2.5 mil (mil = 1/1000 tum)
Bredd på skanningsområde: 1 cm - 16 cm
Typ av skanningselement: Synlig laserdiod
Sensorupplösning: 864 x 544
Våglängd för ljuskälla: 630-680 nm
Skanningsläge: Enkelpass
Skevhet (grader): 40
Lutning (grader): 40
PCS (Print Contrast Signal): 15%
Avkodningskapacitet: EAN/JAN, GS1 DataBar, QR-kod, MaxiCode, Aztec-kod, UPC-A, UPC-E, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Austrialiensisk poststandard, Kinesisk poststandard, Japansk poststandard, Kix (Nederländsk poststandard), MacroPDF417, Royal Mail, Micro QR-kod, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, Direct Part Mark (DPM)
TTL-avkodning: Avkodad
Anslutningsteknik: Trådlös
OK-meddelande: Ljudsignal, LED-indikator
Egenskaper: Robust, Datalogic Three Green Lights (3GL), avtagbart batteri, Direct Part Mark (DPM), droppskydd, Datalogic Motionix-teknik
Trådlös anslutning: Bluetooth 3.0
Gränssnitt: 1 x RS-232
Inkluderade tillbehör: Vagga
Medföljande kablar: 1 x seriell kabel
Standarder som följs: Bluetooth Class 1, RoHS, REACH, IP65, CDRH Class II, IEC 62471
Nätdel: Strömadapter
Batteri: 1 x litiumjon
Medföljande programvara: Datalogic Aladdin, OPOS/JavaPOS Drivers
Bredd: 7.4 cm
Djup: 11 cm
Höjd: 21.2 cm
Vikt: 400 g
Service och support: Begränsad garanti - 3 år
Min temperatur vid drift: -20 °C
Max temperatur vid drift: 50 °C
Luftfuktighet vid drift: 0 - 95 % (icke-kondenserande)
Dropspecifikation: 2 m till betong
Powerscan 9501-DPM-EVO Data Sheet.pdf Powerscan PBT9501 Data Sheet.pdf Powerscan PBT9501 Quick Reference Guide.pdf Powerscan 950X Reference Guide.pdf
