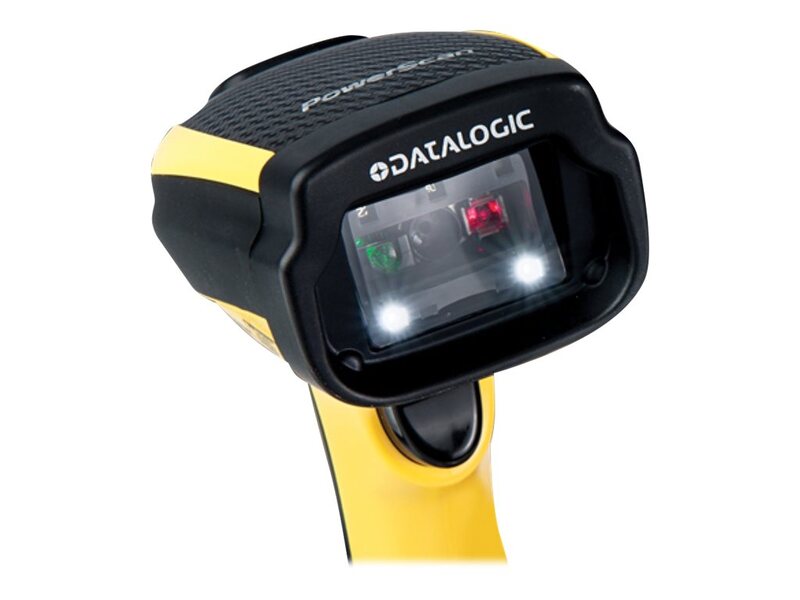

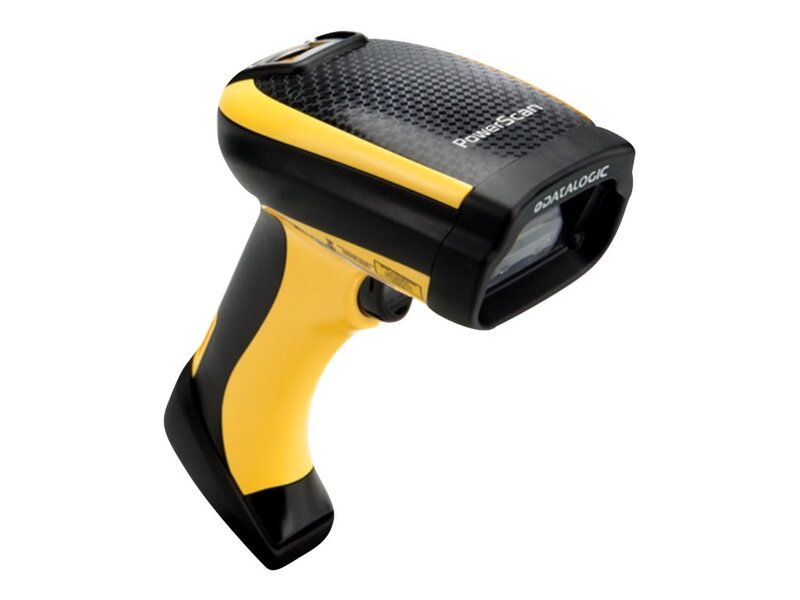

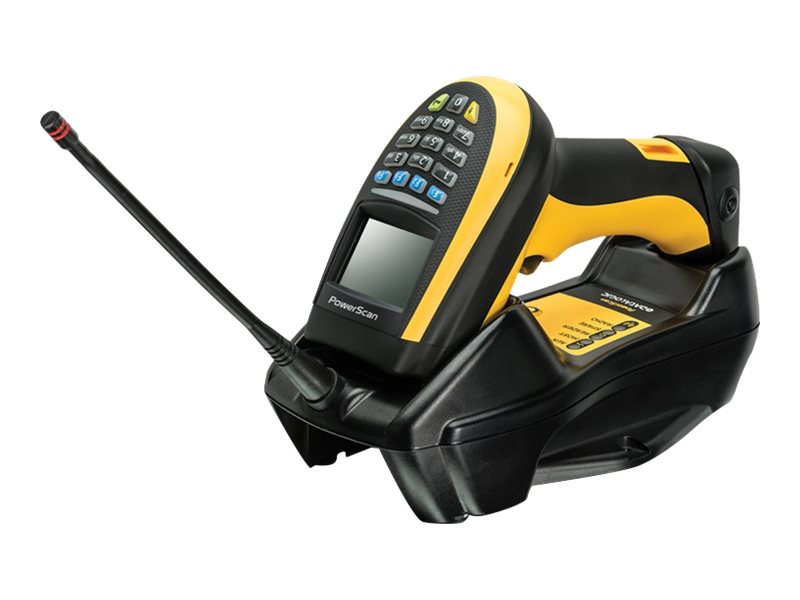

Datalogic PowerScan PBT9501 - streckkodsskanner

Art.nr: PM9501-DKHP433RB

Datalogic PowerScan PBT9501 - Streckkodsskanner - bärbar - avkodad - RF(433 MHz)

Visa mer
Lägg i varukorgen
Favourites icon

42 i lager

Varan är i lager
• Ergonomic shape with well-balanced weight The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations. • 'Green Spot' technology The patented 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces and offer an optional Ethernet for standard or industrial uses. • Motionix motion-sensing technology The PowerScan 9501 imagers introduce a modern technology with the 'Liquid Lens' feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
The PowerScan 9501 2D area imagers combine omnidirectional reading capabilities with outstanding optical characteristics, resulting in a scanner that is able to read any kind of bar code, regardless of orientation!
Typ: Streckkodsskanner - bärbar
Färg: Svart, gul
Typ av gränssnitt: RF(433 MHz)
Minsta streckkodsbredd: 2.5 mil (mil = 1/1000 tum)
Typ av skanningselement: Synlig laserdiod
Sensorupplösning: 1280 x 1024
Våglängd för ljuskälla: 630-680 nm
Skanningsläge: Enkelpass
Max arbetsavstånd: 110 cm
Skevhet (grader): 40
Lutning (grader): 40
PCS (Print Contrast Signal): 15%
Avkodningskapacitet: EAN/JAN, Kod 93, Industrial 2 of 5, Kod 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR-kod, MaxiCode, Aztec-kod, Kod 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Kod 11, Interfolierad 2 av 5, Postnet, PDF417, Data Matrix, PLANET, Austrialiensisk poststandard, Kinesisk poststandard, Japansk poststandard, Kix (Nederländsk poststandard), Plessey, MacroPDF417, RM4SCC, Royal Mail, Micro QR-kod, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, EAN-128, EAN-8, EAN-13, MSI, Code 39 CIP, UPC A Composite, UPC E Composite, Base 32
TTL-avkodning: Avkodad
Anslutningsteknik: Trådlös
OK-meddelande: Ljudsignal, LED-indikator
Egenskaper: Med avtryckare, ESD-säker (elektrostatisk urladdning), Datalogic Three Green Lights (3GL), Datalogic STAR Cordless System, autofokus, Datalogic Motionix-teknik
Antal tangenter: 16
Trådlös anslutning: RF
Display-upplösning: 48 x 132
Teckenupplösning: 6 rader x 21 tecken
Standarder som följs: REACH, IP65, CDRH Class II, China RoHS, IEC 60825 Class 2, IEC 62471, EU RoHS
Nätdel: Strömadapter
Elektrisk ström erfordras: 150 mA (drift)
Batteri: 1 x litiumjon
Medföljande programvara: Datalogic Aladdin, OPOS/JavaPOS Drivers
Bredd: 7.4 cm
Djup: 11 cm
Höjd: 21.2 cm
Vikt: 440 g
Service och support: Begränsad garanti - 3 år
Min temperatur vid drift: -20 °C
Max temperatur vid drift: 50 °C
Luftfuktighet vid drift: 0 - 95 % (icke-kondenserande)
Dropspecifikation: 2 m till betong
Powerscan PBT9501 Data Sheet.pdf Powerscan PBT9501 Quick Reference Guide.pdf Powerscan 950X Reference Guide.pdf
