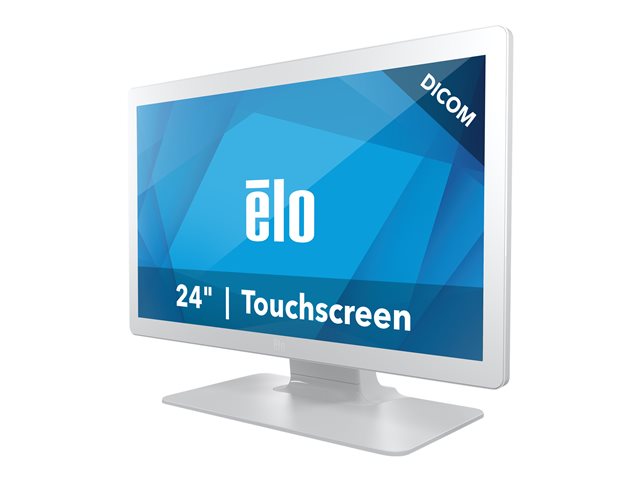

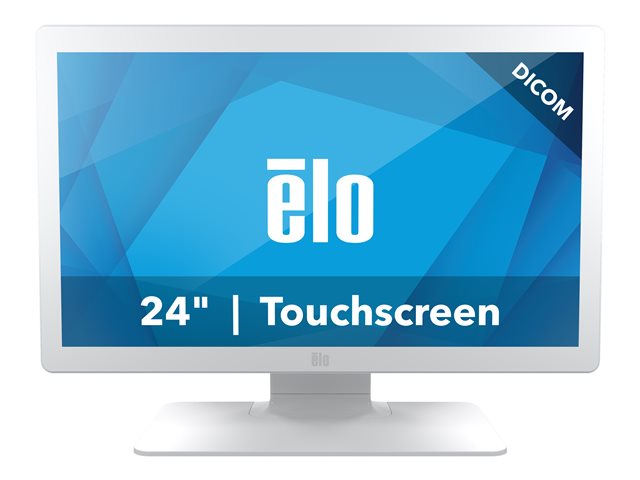

Elo 2403LM - LCD-skärm - Full HD (1080p) - 24"

Art.nr: E659395

Elo 2403LM - LCD-skärm - 24" (23.8" visbar) - pekskärm - 1920 x 1080 Full HD (1080p) @ 60 Hz - 250 cd/m² - 1000:1 - 15 ms - HDMI, VGA - högtalare - vit

Visa mer
Option 1
Option 2
Option 3
12 831 SEK / st
Inkl. moms
16038,75 SEK / st
Hyr från 413 SEK/månad i 36 månader Information icon
Lägg i varukorgen
Favourites icon

95 i lager

Varan är i lager
• IP-54 rating Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution. • IEC 60601 IEC 60601 compliant power supply included. • DICOM 14 Ensures accurate and uniform image reproduction for reliable review. • Integrated touch TouchPro PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves. • Easy to clean Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays. • Designed for consistent image review Get the image accuracy you need during clinical review with the 03-series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve. • Purpose-built for healthcare The 03-series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
The Elo 2403LM 24-inch Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
Typ av bildskärm: LCD-skärm / TFT aktiv matris
Diagonal storlek: 24"
Bildyta: 23.8"
Inbyggda enheter: USB-hubb
Bildförhållande: 16:9
Ursprunglig upplösning: Full HD (1080p) 1920 x 1080 vid 60 Hz
Ljusstyrka: 250 cd/m²
Ljusstyrka med pekskärm: 240 cd/m²
Kontrastförhållande: 1000:1
Färgstöd: 16,7 miljoner färger
Responstid: 15 ms (tr - tf)
Vertikal uppdateringshastighet: 50 - 75 Hz
Horisontell uppdateringshastighet: 30 - 82 kHz
Horisontell visningsvinkel: +89 / -89
Vertikal visningsvinkel: +89 / -89
OSD-språk: Kinesiska (traditionell), kinesiska (förenklad), engelska, tyska, franska, italienska, ryska, spanska, japanska, koreanska
Egenskaper: TouchPro-teknologi, DICOM Compliant
Färg: Vit
Dimensioner (BxDxH): 57.46 cm x 23.3 cm x 43.29 cm - med ställ
Vikt: 8.7 kg
Typ: Högtalare - stereo
Uteffekt / kanal: 2 Watt
Typ: Pekskärm - pekskärm
Teknik för rörelsedetektering: Projicerad kapacitet
Gränssnitt: HDMI ¦ VGA ¦ Linjeutgång för ljud (minijack) ¦ USB (Typ B) ¦ USB 2.0 (Typ A) ¦ 4 x Micro-USB
VESA-infästningsgränssnitt: 100 x 100 mm
Medföljande kablar: 1 x VGA-kabel ¦ 1 x HDMI-kabel ¦ 1 x USB-kabel ¦ 1 x ljudkabel
MTBF (genomsnittstid mellan fel): 50,000 timmar
Standarder som följs: UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012
Inspänning: AC 120/230 V (50/60 Hz)
Strömförbrukning (typisk): 25.5 Watt
Strömkonsumtionsvila: 0.33 Watt
Emballagets bredd: 68 cm
Emballagets djup: 31.8 cm
Emballagets höjd: 52.6 cm
Emballagets vikt: 12 kg
Service och support: Begränsad garanti - 3 år
Min temperatur vid drift: 0 °C
Max temperatur vid drift: 40 °C
Luftfuktighet vid drift: 20 - 80 % (icke-kondenserande)
LCD Touchmonitor Quick Installation Guide.pdf 2403LM 24-inch LCD Product Overview.pdf
